Product details:
Temperature-sensitive materials need to be cooled in real time after homogenization. The material heat exchanger for high-pressure homogenizer has the characteristics of capillary jacketed type and high heat exchange area. In conjunction with the condensate system, it can achieve rapid cooling of materials in real time. For some materials that need to be maintained at a specific temperature, such as maintaining at a higher temperature, the specific temperature can be maintained by cooperating with the liquid flow at a specific temperature.

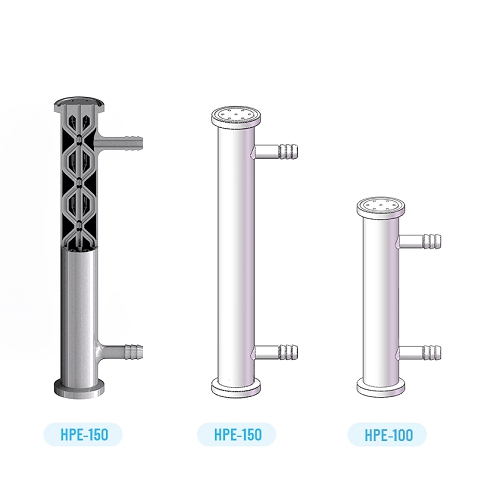

Parameter introduction: The 3D sanitary high-pressure heat exchanger is an efficient shell-and-tube design. The outer tube size ranges from 3/4 "to 2". The heat exchange power can reach 60KW at a coolant flow rate of 1000L/Hr. It is suitable for material cooling in homogenizers and extruders and other instruments.Model: HPE-100-3D, HPE-150-3D, etc.
Product characteristics:
1 Hygiene level: The material contact material is& 316L stainless steel approved by FDA GMP.
2 Pressure: Up to 5,000 PSI(345Bar).
3 Interface: Users can choose clamps, flanges, NPT or UNF threads, etc.
4 Heat exchange power: It can be selected according to the user's material temperature and flow rate.
5 Compatibility: Suitable for post-cooling of materials in high-pressure homogenizers and extruders.
6 Temperature range: -190 to 250 ℃.
